Equipped with high-definition laser lens
*EL-g36K supprot full HD 4K
*Superbright for differnt enviroment
*360 degree projection
*closed dustproof design
*edge blending
*NFC function
*lens shift function
*Throw ratio 1.24-2.01
Equipped with original high-quality stnadar motorized lens
Throw ratio(16:10) :1.24-2.01 Zoom Ratio:1.62
Support short-throw, long-throw, and super-long throw
choose different lenses for different project standards,
perfectly adapt to various usage scenarios
| Inputs | HDMI(1.4B Compatible) x2 ; DVI-D x1; HD-BaseT(Compatible) x1; RGB combination (D-sub 15 pin) x1; USB(B) Display ×1; Mini jack 3.5mm audio (VGA / DVI-D shared) x1 | |
| | |
| | HDMI(1.4B Compatible) ×1; Mini jack 3.5mm audio x1 |
| | 60-1000 inches (diagonal) |
| Control | Serial port (D-sub 9 pin, RS232) x2(in + out); RJ45(10BASE-T/100BASE-TX) x1; Mini jack 3.5mm stereo(Input for wired control) x1;
Mini jack 3.5mm stereo(Output for wired control loop) x1; DMX512 x1 |
| Other interfaces | USB-A x1; LAN(Network)x1(Shared) |
| Internet of Things(IoT) | Crestron RoomView (Compatible); AMX Discovery (Compatible); PJ Link (Compatible) |
| Certification | CE,RoHs ,CCC etc. |

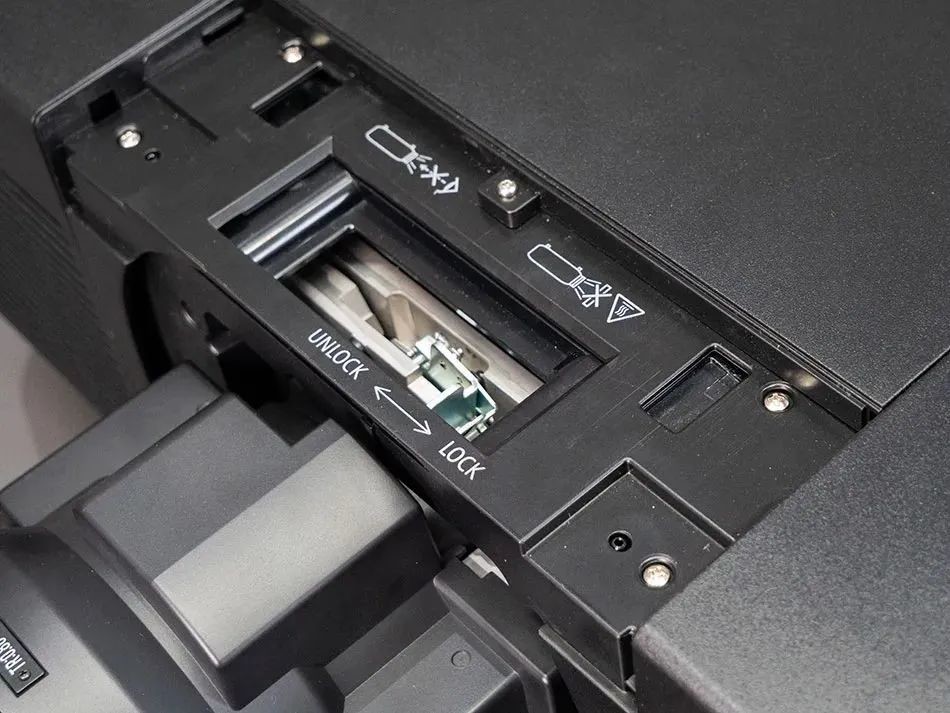

Quick disassembly lens design
Edge Blending function
The edge blending function enables multiple projectors to splice the complete picture. Seamless connection, the pursuit of bright super large
images, pure colors, high-resolution display
Sealed and dust-proof design, eliminating filter screen maintenance
and replacement. More time and effort saving
The projector has the lens movement function, and the screen
can be translated without loss through the menu. The user can
easily adjust the position of the projected image. The maximum
adjustment range in the vertical direction is 65% (upward), and the
maximum adjustment range in the horizontal direction is ± 25%.
Save the lens position adjusted by the lens displacement function
and record it. The stored lens position will not be reset by forced
power off/normal shutdown. Preset positions can be selected
through menu options.
The projector supports 360 ° omnidirectional projection. The screen can be translated without loss through the menu. The user can easily adjust
the position of the projected image.
HDBaseT is a multi-signal transmission system based on Cate5e/6
network cable. With only one Cate5e/6 network cable, it can realize
real-time HD signal transmission up to 100 meters.
The network
cable connection is also more convenient than other cabling
schemes, greatly simplifying engineering cabling, applicable to var
ious complex installation environments, and improving the stability
and reliability of the system.
Input
100BaseT router
Super Class 5 / Class 6 cable
HDMI
cable
RS232 cable
RS232 serial p
Shenzhen Flyin Technology Co.,Limited
Shenzhen Flyin Technology Co., Limited is a modern high-tech enterprise . Integrating with the product
development, production and sales. Our company was founded in Dec.
2013, and the FLYIN brand was successfully registered in the same
year as well. In December 2013, our company established his own
factory in Shenzhen, Guangdong. Based on the trend of times and the
demand of customers, our company focuses on the innovation and
development of core technologies, so that already independently
developed 3LCD display technology with laser light source series
projectors and DLP Display technology with Led Light source series
projectors .
