Main features
● 20000H hours of real time with the new light source of Laser;
● LCD display (LCD) technology: WUXGA (1920x1200);
● 6 optional lenses, for your choice. Flexible installation
● Focus/ Zoom function;
● Lens shift function
● Edge blending function.
● 3G-SDI functions are optional to realize long distance
transmission of
HIGH-DEFINITION signals and meet diversified needs of users

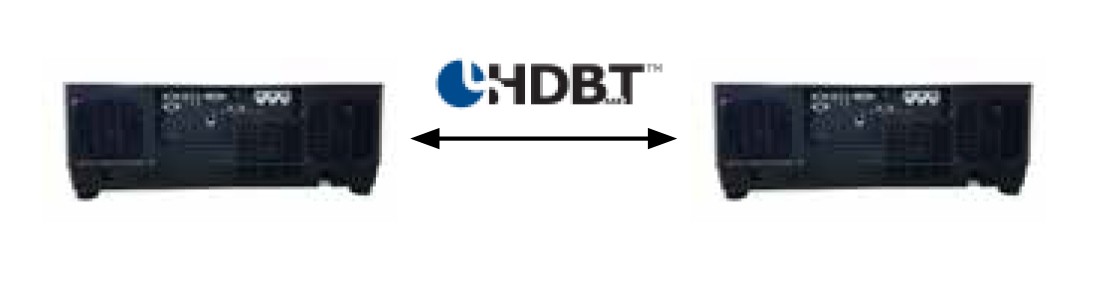

● HDBaseT function.
● Perfect combination of high brightness and color;
● Multi-interface, dual HDMI input;
● Logo (Logo select, Capture, Logo PIN code lock and Logo PIN code
change) function;
● Blank design.Tap the button, the projector will switch into blank
screen status immediately for
prevention of information leakage;
● Various projection mode;
● On and Off instantly;
● 0.55W ultra low power consumption on standby mode;
● Industrial design. ESD filter (static) - dustproof design and
filter check function
automatically;
● Logo PIN Code lock and Kensington lock to anti-theft function;
● Abnormal log management and troubleshooting function;
Compatible Lens ,
Compatible Projector Lens |
Model | EM15ZL | EM40ZLM | EM41ZLM | EM43ZLM |
Material Number | 240005500 | 240005600 | 240005700 | 240005800 |
Photos |
|
|
|
|
Type | Ultra Long Throw Lens | Short Throw Lens | Standard Lens | Long Throw Lens |
Quotation | US$2,600 | US$2,600 | US$1,800 | US$2,800 |
Focus , Zoom | Manual | Motorized | Motorized | Motorized |
F# (Wide- Tele) | 2.2-2.7 | 2.0-2.5 | 1.7-2.0 | 2.2-2.6 |
f (mm) | 76.6-116.5 | 13.3-18.6 | 21.8-49.8 | 49.7-99.8 |
Throw ratio (16:10) | 4.59-7.02:1 | 0.79-1.11:1 | 1.3-3.02:1 | 2.99-5.93 |
Projection area (recommend) | 60-500 inches | 50-500 inches | 50-500 inches | 50-500 inches |
weight | 1kg | 1.63 kg | 1.8 kg | 1.8 kg |
Inches | Wide x High | Distance (Min) | Distance (Max) | Distance (Min) | Distance (Max) | Distance (Min) | Distance (Max) | Distance (Min) | Distance (Max) |
50 | 1.077x0.673 |
|
| 0.83 m | 1.177 m | 1.380 m | 3.228 m | 3.285 m | 6.440 m |
80 | 1.723x1.077 | 7.948 m | 12.182m | 1.351 m | 1.908 m | 2.235 m | 5.189 m | 5.178 m | 10.238 m |
100 | 2.154x1.346 | 9.984 m | 15.276 m | 1.698 m | 2.395 m | 2.804 m | 6.496 m | 6.440 m | 12.771 m |
150 | 3.231x2.019 | 15.073 m | 23.012 m | 2.567 m | 3.614 m | 4.229 m | 9.763 m | 9.595 m | 19.101 m |
200 | 4.308x2.692 | 20.162 m | 30.747 m | 3.435 m | 4.832 m | 5.654 m | 13.031 m | 12.75 m | 25.431 m |
250 | 5.385x3.365 | 25.251 m | 38.482 m | 4.304 m | 6.051 m | 7.078 m | 16.298 m | 15.904 m | 31.762 m |
300 | 6.462x4.039 | 30.340 m | 46.217 m | 5.173 m | 7.269 m | 8.503 m | 19.566 m | 19.059 m | 38.092 m |
350 | 7.539x4.712 | 35.428 m | 53.952 m | 6.041 m | 8.488 m | 9.927 m | 22.833 m | 22.214 m | 44.423 m |
400 | 8.616x5.385 | 40.517 m | 61.687 m | 6.910 m | 9.706 m | 11.352 m | 26.101 m | 25.369 m | 50.753 m |
500 | 10.770x6.731 | 50.695 m | 77.157 m | 8.647 m | 12.143 m | 14.201 m | 32.363 m | 31.678 m | 63.414 m |
|
|
|
|
|
|
|
|
|
|
