| Brightness |
| | Brightness | 5500 |
| | Brightness -TYP | 5000 |
| Overall Spec |
| Panel | Display Panel | 3x0.64” with MLA |
| Display Technology | Liquid Crystal Display |
| Native Resolution | WUXGA (1920 x 1200) |
| Light source Life time | Normal mode | 20000hrs |
| ECO1 mode | 30000hrs |
| ECO2 mode | 30000hrs |
| Lens | Lens Vendor | RICOH |
| Projection Lens | F | F1.6 |
| f | 6.39mm |
| Zoom/Focus | Manual |
| Throw Ratio | 0.44:1 |
| Zoom Ratio | N/A |
| Screen size | 55-130 inch |
| Lens Shift | N/A |
| CR | Contrast Ratio
(FOFO) | 5000000:1 |
| Noise | Noise(dB) | TGT:
37dB(Normal) 27dB(ECO) |
| Uniformity | Uniformity(Actual Min)
-JISX6911 | 80% |
| AR | Aspect Ratio | Native:16:10 Compatible: 4:3/16:9 |

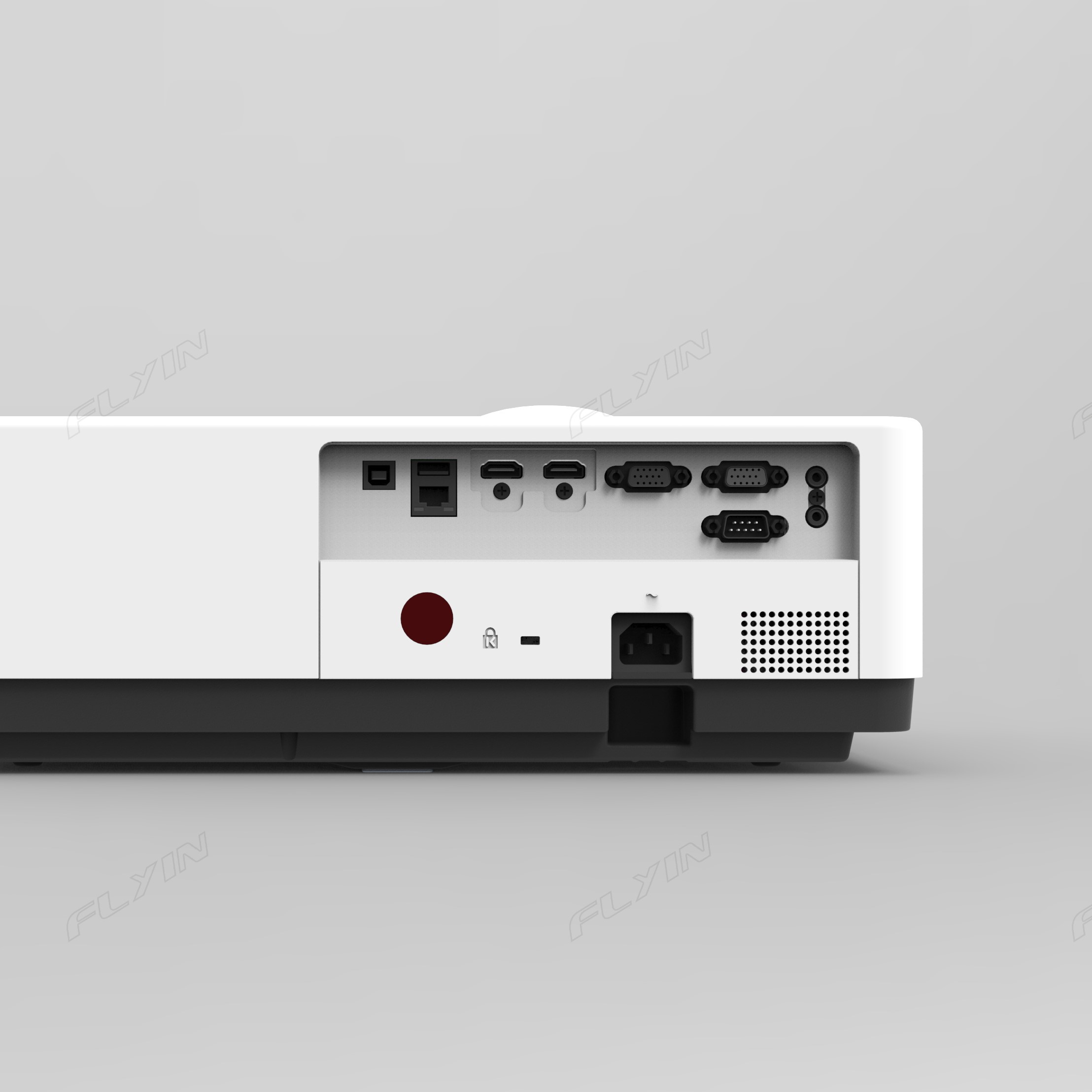

| Terminal(I/O port) |
| Input | VGA | *1 |
| HDMI 1.4B(IN) | *2 |
| USB-A | *1 |
| USB-B | *1(Display) |
| RJ45 | *1(Display) |
| DVI-D | N/A |
| HD BaseT | *1(Optional) |
| HD-SDI(3G-SDI) | N/A |
| Video | N/A |
| | Audio in
(mini jack,3.5mm) | *1 |
| Output | VGA | *1 |
| HDMI 1.4B(OUT) | N/A |
Audio out
(mini-jack,3.5mm) | *1 |
| Control | RS232 | *1 |
| RJ45 | *1 (Control) |
| USB-B | *1 (For upgrade) |
| Wired Remote(IN) | N/A |
| Wired Remote(OUT) | N/A |
| General Spec |
| Audio | Speaker | 16W*1 |
| Dust filter | W/Filter |
| Filter Life time | 8000h |
| Power Consumption | Power Requeirements | 100~240V@ 50/60Hz |
Power Consumption
(Normal) (Max) | 360 |
Power Consumption
(ECO1) (Max) | 280 |
Power Consumption
(ECO2) (Max) | 230 |
| ECO Standby Mode Power Consumption | <0.5W |
| Temp.&Humidity | Operating Temp. | 5 to 40deg.C |
| Operating Thumidity. | 20-80% |
| Store Temp. | ‘-10 to 50deg.C |
| High altitude | 0~3000m |
| Other Functions |
| Keystone | Keystone Correction
(Lens@center) | V: ±15° H:±15°
Pincushion/Barrel Correction
6 Corner correction
4 Corner Correction Grid image tune |
| OSD | Languages | 26 languages: English, German, French, Italian, Spanish, Polish,
Swedish, Dutch ,Portugese, Japanese, Simplified Chinese,
Traditional Chinese, Korean, Russian, Arabic, Turkish, Finnish,
Norwegian, Danish, Indonesian, Hungarian, Czech,
Kazak,Vietnamese,Thai, Farsi |
| LAN Control | LAN Control-RoomView (Crestron) | Yes |
LAN Control--
AMX Discovery | Yes |
LAN Control--
PJ Link | Yes |
| Scanning Frequency | H-Synch Range | 15~100KHz |
| V-Synch Range | 24~85Hz |
| Display Resolution | Computer Signal Input | VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@3
0Hz |
| Video Signal Input | 480i, 480p, 576i, 576p, 720p, 1080i
and 1080p |
| SW setting | Auto Setup | INPUT SEARCH,AUTO PC,Auto
Keystone |
| Blank | Yes |
| Suspend | Yes(5miniutes no singnal as default) |
| Picture mode | Dynamic,Standard,Cinema, Colorboard,sim-DICOM
,Blackboard(Green) |
| Cooling time | 0s, Normal,60s |
| | Auto Ceiling | Yes |
| D-Zoom | 1~33 |
| Others | 360° projection | Yes |
| Edge Blending | N/A |
| Wireless display无线投屏 (Optional) | SmartPhone:
Android:Install APK for Android
iphone: Airplay function
PC投屏:
Support WiFi Display@Windows&MAC system
through dongle |
| Dimension&Weight |
| | MAX Dimensions
(WxHxD mm) | 405*404*164mm |
| | Net. Weight (KG) | ~7.9KG |
| | Packaging Box Dimensions
(WxHxD mm) | 510*498*260 |
| | Gross. Weight (KG) | ~10.4KG |
| Accessory |
| | Manual Languages | Chinese,English |
| | Standard Accessaries | Power cord(EU)/power cord(Ja) Remote control&RC Battery |
| Regulation List |
| China | CCC | √ |
| CECP | X |
中国効率規制
(2016/10-)-CEL | X |
| WW | CB | √ |
| US | cTUVus | √ |
| FCC | √ |
| FDA | √ |
| EU | CE-EMC | √ |
| CE-LVD | √ |
| CE-ERP | √ |
| 激光等级 | class1 | √ |
| EMC Class |
| | EMC Class | Class A@3dBm |
