Model Number | PU950 |
Projection Specification |
Display Technology | DLP chip × 1,0.67"DMD |
Light Source | New SLPL Laser module |
Brightness | 15000 lumens |
Resolution | 1920*1200 |
Dynamic Contrast | 15000:1 |
Color Space | >90% REC709 |
Uniformity | 0.9 |
Projection Lens | F:1.5-2.4,1.6X optical zoom,f=22-35mm |
Optional Lens | LA030C:0.3:1LA054C:0.54:1LA065C:0.65:1LA080C:0.8:1LA120C:0.7-1.2:1LA160C:1.07-1.7:1LA300C:1.5-3.0:1 |
Lens Shift | Vertical electrical 50%,Transverse electrical 10%,electrical |
Keystone Correction | Vertical keystone correction ±30° |
Screen Size | 40inch～400inch |
Input Interface | VGAComputer Input 1 (15 Pin)× 1,BNC*5 (RGBHV)× 1,Video BNC×
1,S-Video (Mini DIN 4 pin)× 1,DVI-I× 1,HDMI (v1.3 with audio)×
2,HD-BASET(RJ45)× 1, Network transmission RJ45(Optional,
intelligent system)× 1,USB (Type A) (Optional, intelligent system)×
2 |
Output Interface | VGA Display output (15 Pin)×1 |
Control Port | RS232 serial interface(9 Pin,male) input× 1,RS232 serial
interface(9 Pin,male) output× 1,USB (Type mini B)× 1,Network
interface
(RJ45)× 1,USB Type A(Power supply)× 1 |
Computer Compatibility | VGA SVGA XGA SXGA WXGA UXGA Mac |
Video Compatibility | PAL,SECAM,NTSC
4.43,PAL-M,N,HDTV(480i,480p,575i,575p,720p,1035i,1080i and 1080P) |
Horizontal Scanning Frequency | 15-100 KHz |
Vertical Sanning Frequency | 48-85 Hz |
Power Consumption | 780W/Standby<0.5W |
Power Supply | 100-240V AC |
Power Supply | 100-240V AC |
Loudspeaker | 1*10W |
Light Source Life | Bright mode:20000 hours；ECO mode:25000 hours |
Dimension (LxWxH) | 524*519*197mm |
Weight | <30KG |
Noise Level | <37dB @33℃ |
Projection Ways | Front projection/Rear projection,Desk/Lifting |
Appearance Color | Black |
Working Temperature | 5-35℃ |
Storage Temperature | -10-60℃ |
Menu language | 3 languages(Chinese,English,Traditional Chinese) |

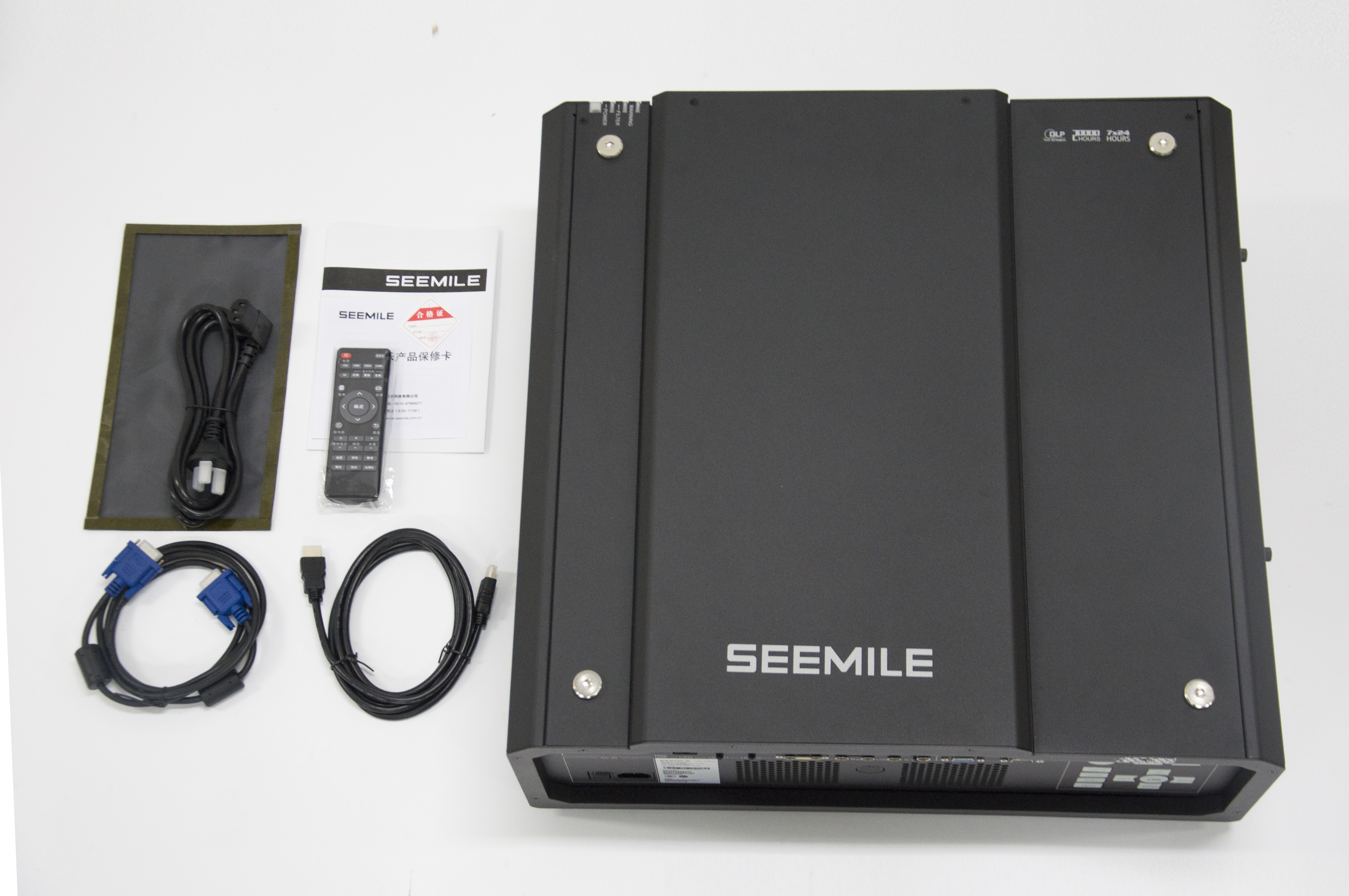

Standard Accessories | Power Cord, Remote Control, VGA Cable, HDMI, Warranty card,
Qualified card |
Qualification File | 3CCECPMachine performance test report(Commissioned test) |
