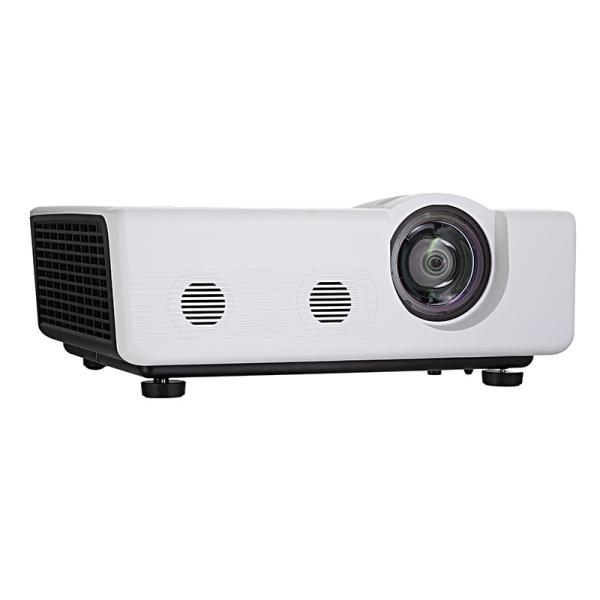

4200 Ansi Lumens DLP Laser Projector For Education Holographic
DLP Laser Projector 3d Proyector Wxga 4200 Ansi Lumens For
Education Holographic Use
New laser light source, environmental protection and eye protection
The new laser light source has a lifespan of more than 20,000
hours, long-lasting high-brightness output, minimal attenuation of
color and image quality, and presents the most comfortable visual
sense.
The new laser light source has no blue light overflow radiation, no
stroboscopic and astigmatism, and is reflected to the human eye by
the screen. Compared with the flat panel display device, the damage
to the human eye is reduced to the extreme. Even if it is viewed
for a long time, there is no Fatigue.
Ultra-high contrast, ultra-high color gamut
500,000:1 ultra-high contrast ratio, richer color levels, more
obvious contrast between light and dark, and more vivid and
beautiful images; the laser color gamut is as high as 120%, making
colors more real, 1.07 billion display colors, making the
projection screen colorful and beautiful.
Cost effective
USD The life of the traditional lamp light source is about 4000
hours, while the new laser light source has a life of more than
20,000 hours. Normal use can guarantee 8 years without replacing
the light source. In 8 years, the traditional projector needs to
replace at least 7 bulbs, and the purchase cost has exceeded 400
USD. , Using the CLW350A series will save you all this cost and
truly achieve zero cost for later use.
Support vertical and horizontal keystone correction
CLW350A has vertical and horizontal keystone correction function,
the adjustment angle is up to 40°, which can easily cope with the
vertical and horizontal keystone distortion of the image, making
the installation and debugging of the short throw projector more
convenient.
Fully enclosed, no filter design, high efficiency and dustproof
The CLW350A light source and all optical components adopt a fully
enclosed design. Even if it is used in a harsh environment, there
is no need to worry about dust and other impurities affecting the
projector, so you can rest assured and more at ease. No filter
design, no need to calculate the dust removal time, no more tedious
filter cleaning work, so that the projector is truly
maintenance-free for life, so you can use it with peace of mind and
worry more.
| Projection System | DLP |
| Native Resolution | 0.55" WXGA,1280x800 |
| Brightness. | ≥3700 lm |
| Contrast Ratio (Full on/off) | ≥20000:1 |
| Aspect Ratio | Native 16:10 |
| Throw Ratio | 0.52:1(80"@0.79m) |
| Image Size (Diagonal) | 80" ~150" |
| Zoom Ratio | fixed |
| Light Source Type | LD module |
| Life (Normal/Economic) | 20000Hrs ---TBD |
| Keystone Adjustment | Vertical & Horizontal ± 30 degrees |
| Resolution Support | VGA(640 x 480) to UXGA(1600 x 1200) |
| HDTV Compatibility | _ |
| Video Compatibility | NTSC, PAL, SECAM, SDTV
(480i/576i), EDTV (480p/576p,
HDTV (720p, 1080i/p 60Hz) |
| Horizontal Frequency | 15K~102KHz |
| Vertical Scan Rate | 23~120Hz |
| Focus Range | 一 |
| Color Wheel Segment | RYGB |
| Color Wheel Speed | 2X |
| Color Gamut | TBD (Refer to "Picture Mode") |
| ANSI Uniformity (Min.) | 90% |
| JBMA Uniformity (Min) | 90% |
| Interfaces |
| Computer in (D-sub 15pin) | x2 |
| Monitor out (D-sub 15pin) | x1 |
| HDMI | x2 |
| Composite Video in (RCA) | x 1 |
| S-Video in (Mini DIN 4pin) | x 1 |
| Audio in (Mini Jack) | x 1 |
| LAN (RJ45) | x1 |
| RS232 (DB-9pin) | x 1 |
| USB (Type Mini B) | x 1 |
| DC 12V Trigger (3.5mm Jack) | x1 |
| IR | x 1 (Front, facing user) |
| Supplementary Info. |
| Dimensions (WxHxD) | 383.7 x291.5x 147.7mm |
| Weight | 6.23KG |
| Power Supply | AC 100 to 240 V, 50/60 Hz |
| Typical Power Consumption | ~ 290W |
| Stand-by Power Consumption | < 0.5W |
| Network work standby | N/A |
| Acoustic Noise (Typ./Eco.) | 34/ 30 dBA |
| Operating Temperature | 0~40℃ |
| ID color | White |
| Accessories |
| Carton | Yes |
| Remote Control w/ Battery | x 1 |
| Power Cord (by region) | x 1 |
| User Manual CD | x 1 |
| Quick Start Guide | x 1 |
| Warranty Card (by region) | x 1 |
