| Brightness | | |
| | Brightness | 5000lm |
| Overall Spec | | |
| Panel | Display Panel | 3x0.64” |
| Display Technology | Liquid Crystal Display |
| Native Resolution | WUXGA (1920 x 1200) |
Light source
Life time | Normal mode | 20000hrs |
Projection
Lens | F | F1.7 |
| Zoom/Focus | Manual |
| Throw Ratio | 0.235:1
<0.456m@90”> |
| Zoom Ratio | N/A |
| Screen size | 80~"120" |
| Lens Shift | N/A |
| CR | Contrast Ratio
(FOFO) | 500000:1 |
| Noise | Noise(dB)
-1m | TGT:
37dB(Normal)
27dB(ECO) |
| Uniformity | Uniformity(Actual Min)
-JISX6911 | 80% |
| AR | Aspect Ratio | Native:16:10
Compatible: 4:3/16:9 |

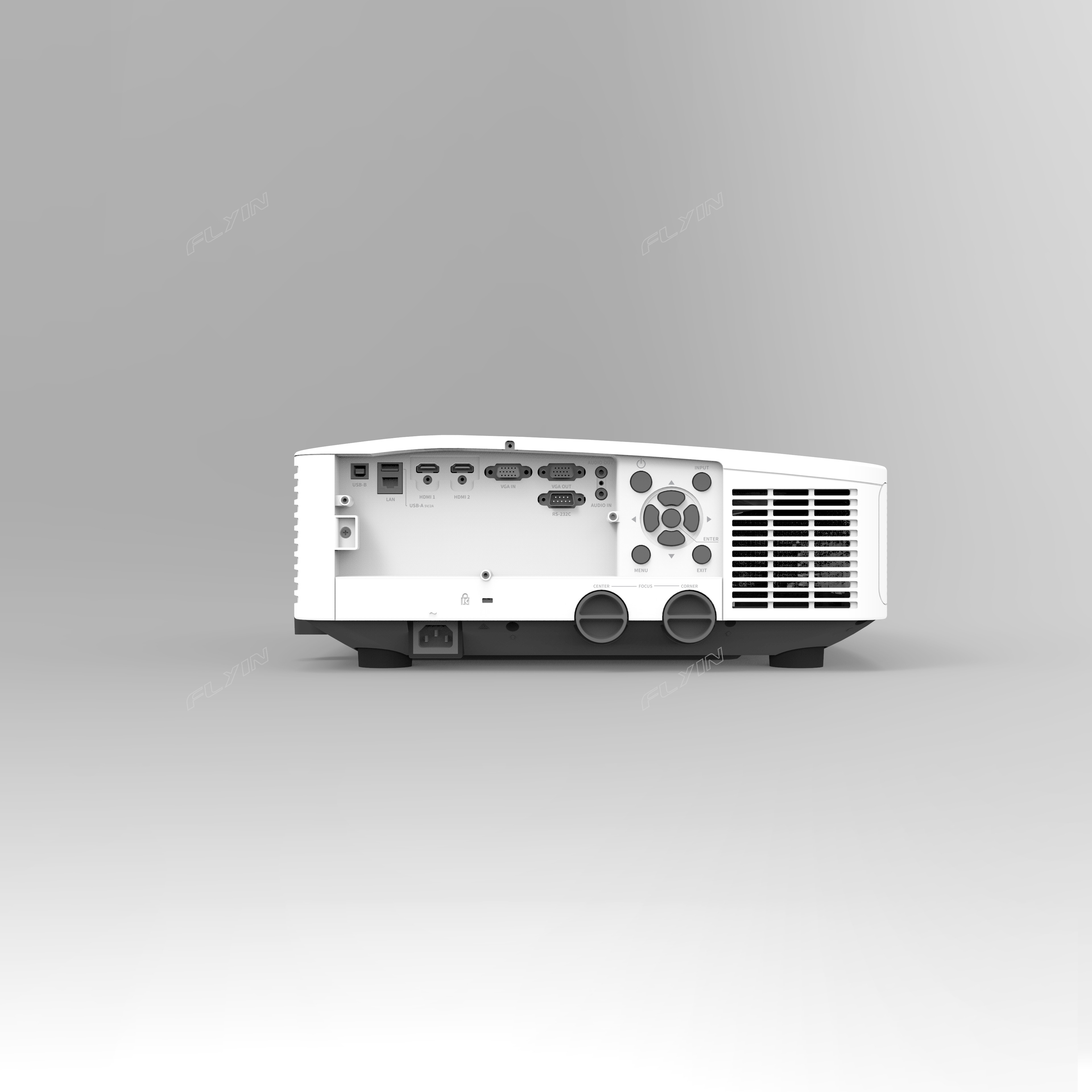

| Terminal(I/O port) | | |
| Input | VGA | *1 |
| HDMI 1.4B(IN) | *2 |
| USB-A | *1 |
| USB-B | *1(Display) |
| RJ45 | *1(Display) |
| DVI-D | N/A |
| HD BaseT | N/A |
| HD-SDI(3G-SDI) | N/A |
| Video | N/A |
Audio in
(mini jack,3.5mm) | *1 |
| Output | VGA | *1 |
| HDMI 1.4B(OUT) | N/A |
Audio out
(mini-jack,3.5mm) | *1 |
| Control | RS232 | *1 |
| RJ45 | *1 (Control) |
| USB-B | *1 (For upgrade) |
| Wired Remote(IN) | N/A |
| Wired Remote(OUT) | N/A |
| General Spec | | |
| Audio | Speaker | 16W*1 |
| Dust filter | W/Filter |
Power
Consumption | Power Requeirements | 100~240V@ 50/60Hz |
Power Consumption
(Normal) (Max) | 360 |
Power Consumption
(ECO1) (Max) | 280 |
Power Consumption
(ECO2) (Max) | 230 |
ECO Standby Mode
Power Consumption | <0.5W |
| Temp.&Humidity | Operating Temp. | 5 to 40deg.C |
| Operating Thumidity. | 20-80% |
| Store Temp. | ‘-10 to 50deg.C |
| High altitude | 0~3000m |
| Other Functions | | |
| Keystone | Keystone Correction
(Lens@center) | V: ±5°
H:±5°
Pincushion/Barrel Correction
6 Corner Geometry correction
Grid image tune |
| OSD | Languages | 26 languages: English, German, French, Italian, Spanish, Polish,
Swedish, Dutch, Portuguese, Japanese, Simplified Chinese,
Traditional Chinese, Korean, Russian, Arabic, Turkish, Finnish,
English Norwegian, Danish, Indonesian, Hungarian, Czech, Kazakh,
Vietnamese, Thai, Persian |
| LAN Control | LAN Control-RoomView
(Crestron) | Yes |
LAN Control--
AMX Discovery | Yes |
LAN Control--
PJ Link | Yes |
Scanning
Frequency | H-Synch Range | 15~100KHz |
| V-Synch Range | 24~85Hz |
Display
Resolution | Computer Signal Input | VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz |
| Video Signal Input | 480i, 480p, 576i, 576p,
720p, 1080i and 1080p |
| SW setting | Auto Setup | INPUT SEARCH,AUTO PC, |
| Blank | Yes |
| Suspend | Yes(5miniutes no singnal as default) |
| Picture mode | Dynamic,Standard,Cinema,
Colorboard,sim-DICOM |
| Cooling time | 0s, Normal,TBD |
| Auto Ceiling | Yes |
| D-Zoom | 1~33 |
| Others | 360° projection | Yes |
| Edge Blending | Yes |
Wireless display
无线投屏
(Optional) | SmartPhone:
Android:Install APK for Android
iphone: Airplay function
PC投屏:
Support WiFi Display@Windows&MAC system
through dongle |
| Dimension&Weight | | |
| | MAX Dimensions
(WxHxD mm) | 520x435x168 |
| | Net. Weight (KG) | ~11 |
| | Packaging Box Dimensions
(WxHxD mm) | 610*526*266 |
| | Gross. Weight (KG) | ~13.5 |
